Pulse Echo Sonar Meter, the innovative mobile application that uses audio pulses and echoes to visualize sound waves. With features like pulse generation, FFT analysis, and echo visualization, users can explore the principles of acoustics in a hands-on way. The app allows for data storage in CSV format and offers various pulse options and waveform choices. From peak frequency detection to FFT averaging, Pulse Echo Sonar Meter provides a comprehensive tool for sound analysis. Whether for educational purposes or simply for fun experimentation, this app is a must-have for anyone interested in the fascinating world of acoustics.
Features of Pulse Echo Sonar Meter:

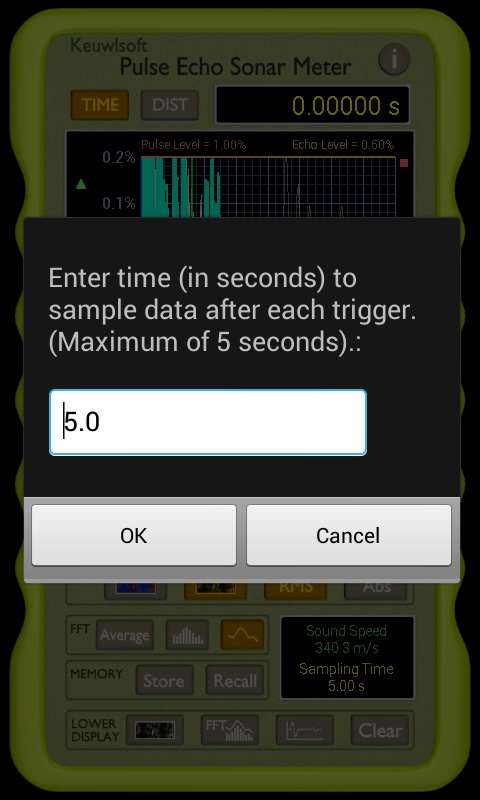

Pulse Echo Sonar Meter boasts a high sampling frequency of 1 kHz, ensuring accurate echo detection. Users can adjust the sampling duration from 001 seconds to 5 seconds to capture the desired amount of data. The app offers both Single and Continuous modes for flexible operation and data collection. Additionally, users can conveniently save their data in CSV format for future analysis and reference.
Pulse Generation:

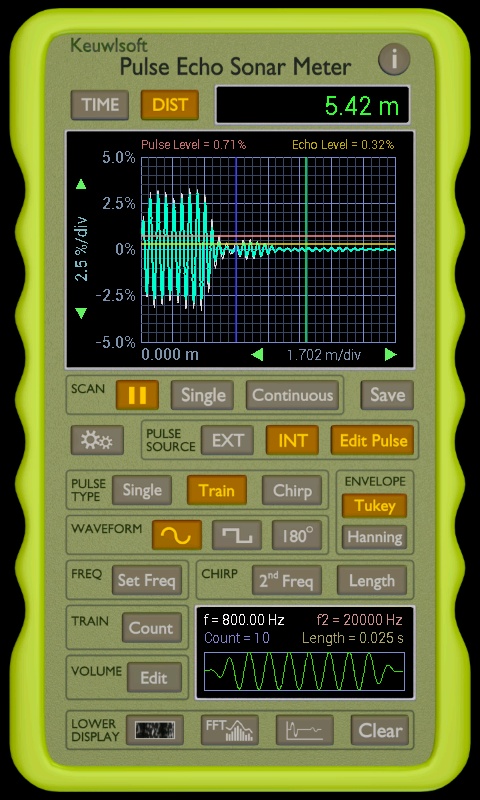

The app provides a variety of pulse generation options, including Single, Train, or Chirp pulses. Users can choose between Square or Sine waveforms and select from Tukey or Hanning Envelopes to customize their pulse signal. With pulse frequencies ranging from 20 Hz to 05 kHz and pulse duration capability of up to 1 second, users can easily create unique pulse configurations for their experiments.
MAP Feature:

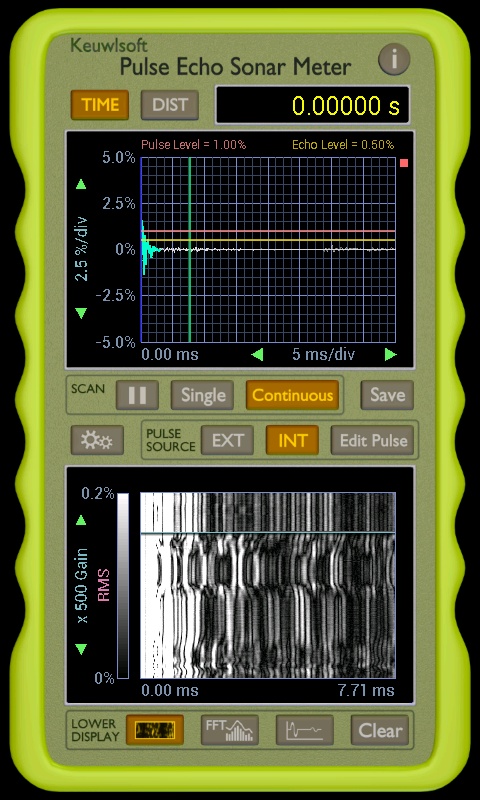

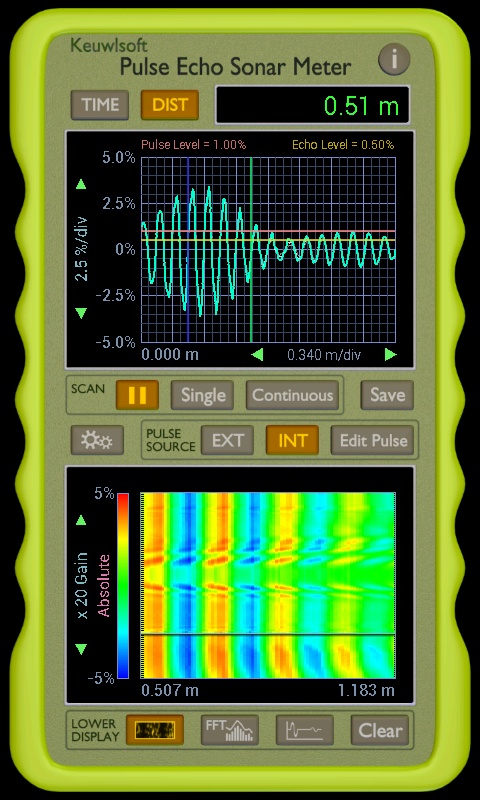

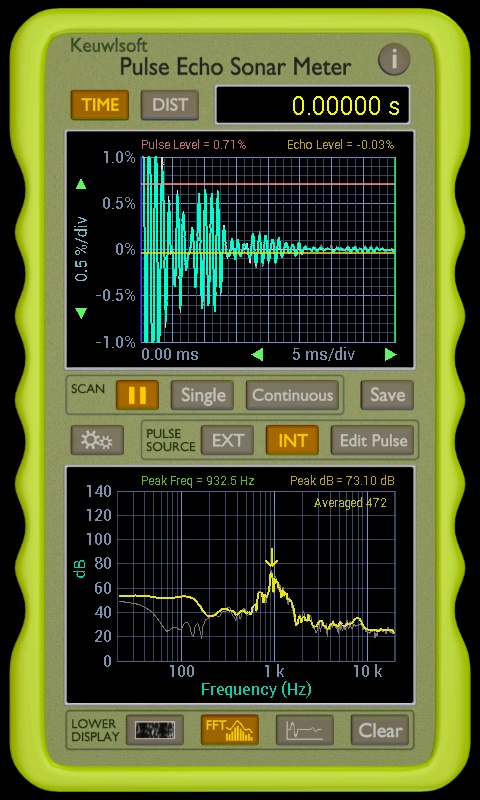

Pulse Echo Sonar Meter features a MAP visualization tool that allows users to create detailed echo maps in color or black and white. By moving the device while pulse-echoing, users can generate intricate maps of the sound distribution in their environment. The app utilizes Fast Fourier Transform (FFT) with 8192 data points for analyzing frequency content, enabling users to detect peak frequencies and perform FFT averaging for precise results.
Playing Tips for Pulse Echo Sonar Meter:
Experiment with different pulse generation settings to create unique sound pulses and analyze their echo patterns.
Use the MAP feature to visualize sound distribution in your surroundings and explore the frequency content of echo signals.
Save your data in CSV format for further analysis and comparison between different pulse-echo experiments.
Adjust the sampling duration and sampling frequency to optimize data collection and enhance echo detection accuracy.
Explore the FFT data provided by Pulse Echo Sonar Meter to identify peak frequencies and analyze the frequency content of your echo signals.
Conclusion:
Pulse Echo Sonar Meter is a comprehensive and user-friendly tool for exploring acoustics principles and conducting pulse-echo experiments. With a wide range of features, including customizable pulse generation, MAP visualization, and FFT analysis, this app provides valuable insights into sound propagation and echo detection. Whether you are a student, researcher, or sound enthusiast, Pulse Echo Sonar Meter offers a versatile platform for experimenting with sound waves and studying acoustic phenomena. Download the app today and embark on a sonic journey of discovery and exploration.
